Echelon AR Signature Titanium All-Road Frame | Custom (Sale)
A closer look
The details
UK-handcrafted titanium. Custom geometry. Exceptional value.

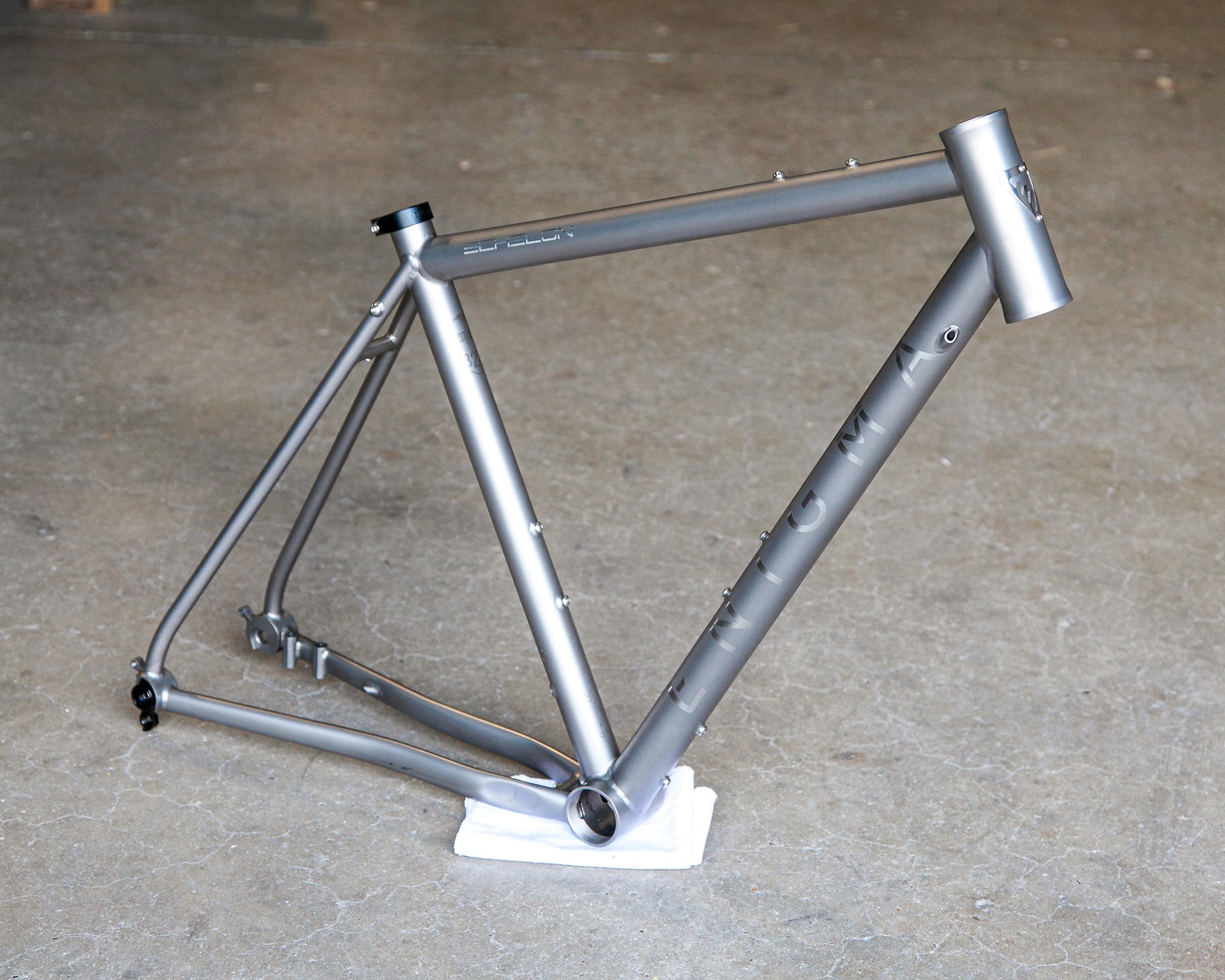

Handcrafted in our Sussex workshop from Grade 9 3Al/2.5V titanium, this Enigma Echelon AR Signature frame features custom geometry and a satin bead finish with brushed logos.
Designed for versatile all-road riding, it offers clearance for tyres up to 40mm, a T47 threaded bottom bracket and practical mounting points for luggage and accessories. Semi-internal Shimano Di2 routing completes this individually built frame.
SAVE 41% – WAS £3,399, NOW £1,999
Condition: Lightly used, having been loaned out for a few weeks. Good overall condition with minor cosmetic signs of use. Supplied with a full Enigma warranty.
Frame only. Includes derailleur hanger, seat clamp, thru-axle and frame fittings. A compatible fork and headset are available separately, or we can build the frame into a complete bicycle.
Specification
- Frame: Enigma Echelon AR Signature, handcrafted in Sussex, UK
- Material: Grade 9 3Al/2.5V titanium

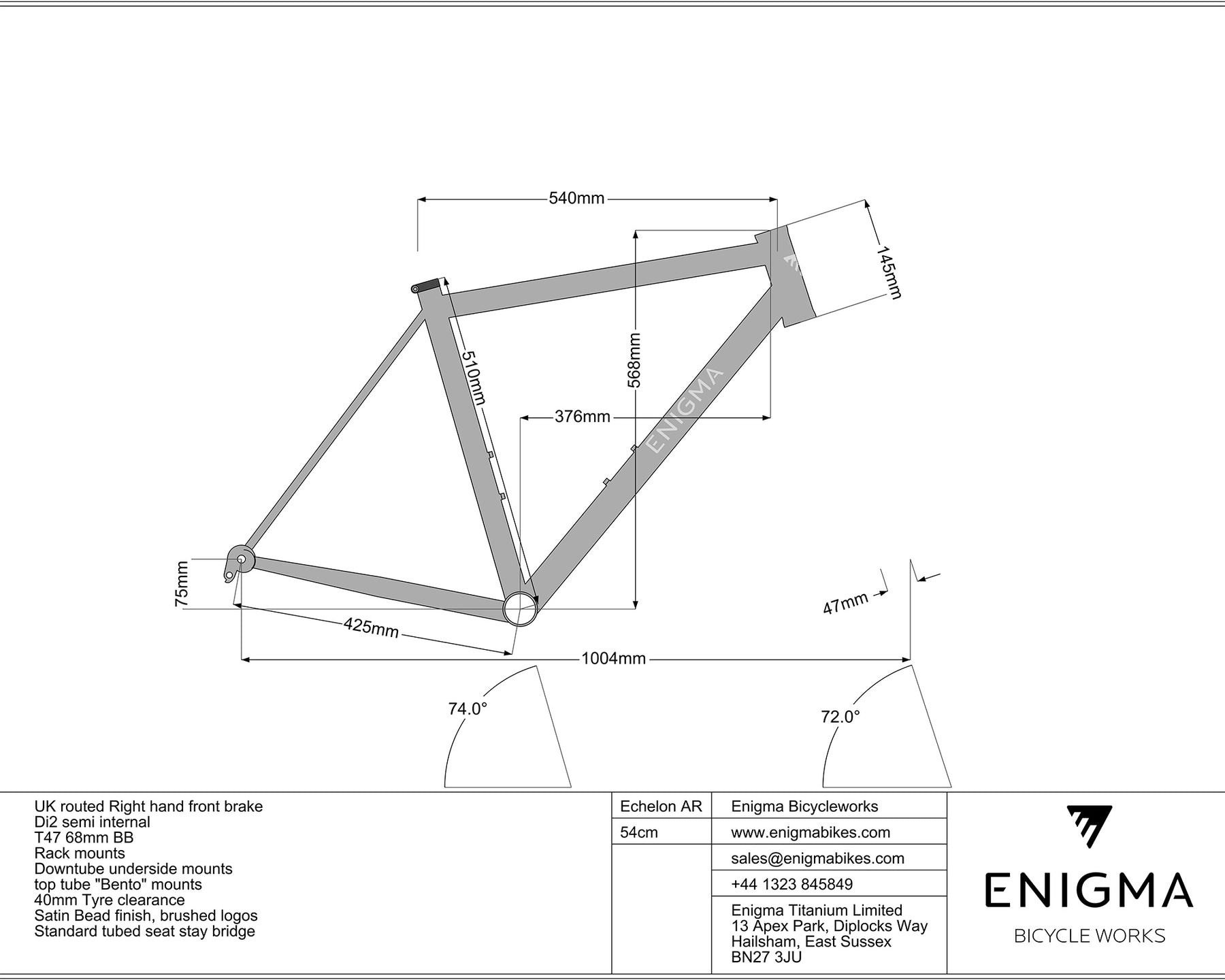

- Geometry: Custom – see frame drawing in product images

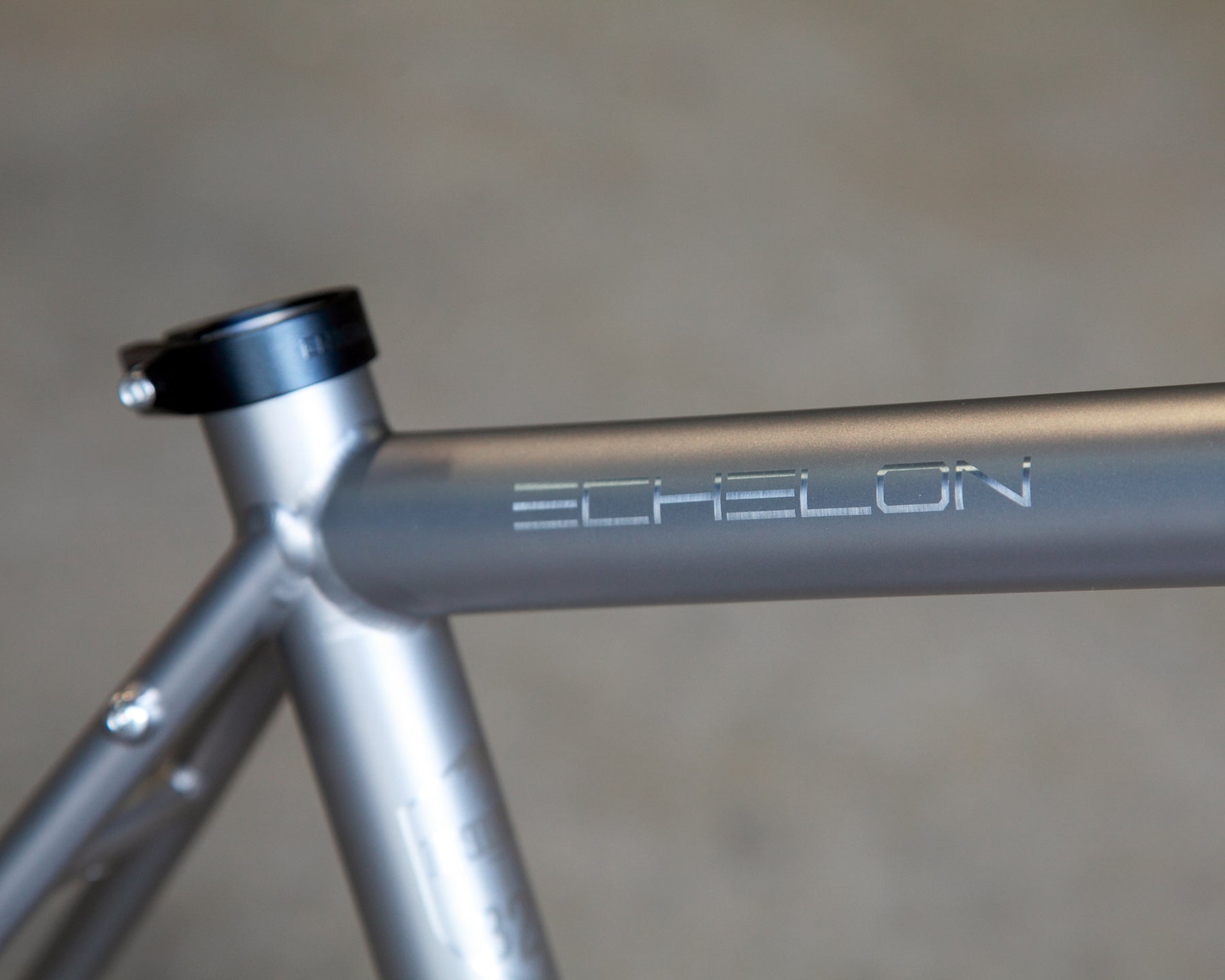

- Finish: Satin bead with brushed logos
- Bottom Bracket: T47 threaded, 68mm
- Cable Routing: Semi-internal Shimano Di2
- Brake Configuration: UK routing, right-hand front brake
- Tyre Clearance: Up to 40mm
- Derailleur Hanger: Enigma Type 2 replaceable hanger (non-UDH)
- Mounts: Rear rack, underside of down tube and top tube bento mounts
- Included: Derailleur hanger, seat clamp, thru-axle and all frame fittings
- Fork & Headset: Not included – available separately
- Complete Bike Build: Available on request
- Condition: Lightly used, minor cosmetic signs of use
- Warranty: Full Enigma warranty included
Size & Availability
Custom geometry – Only one available.
Please refer to the frame drawing in the product gallery for exact dimensions before purchasing.
Contact us for advice on sizing, component compatibility or a complete bike quotation.
