Evoke Mk3
Fast, Focused and Rewarding Titanium Road Bike
Meet the Evoke - a road-focused bike designed for fast-paced riding with precision handling, rewarding performance, and the smooth ride quality that titanium is famous for.
-
Guide Prices:
- Ultegra 11spd Mechanical/WM T47 BB/Hunt 34 Aero Wide Wheels/GP5000 28c Tyres/C-Six Finishing Kit - £4,700
- 105 12spd Wireless/WM T47 BB/Hunt 34 Aero Wide Wheels/GP5000 28c Tyres/C-Six Finishing Kit - £5,150
- Sram Force AXS D2 12spd/WM T47 29mm BB/Hunt 30 Carbon Aero Disc Wheels/GP5000 28c Tyres/C-Six Finishing Kit - £5,900
- Ultegra 12spd Wireless/WM T47 BB/Hunt 30 Carbon Aero Disc Wheels/GP5000 28c Tyres/C-Six Finishing Kit – £6,100
- Dura Ace 12spd Wireless/WM T47 BB/Hunt 48 Limitless Carbon Wheels/GP5000 28c Tyres/C-Six/Fizik Finishing Kit (As per the main image) - £7,800
- Frame Material Custom butted, Size specific, Grade 9 3Al/2.5V titanium
- Frame Finish Included Hand Brushed with Satin Bead Logos
- Axles 12mm x 100mm Front, 12 x 142mm Bolt Thru
- Bottom Bracket T47 86.5mm, for internal bearings
- Brake Mount Flat Mount, 140 or 160mm Rotor
- Seat Tube Internal 31.6mm
- Seat Tube External 34.9mm
- Headset Integrated IS42 Upper / IS52 Lower (Chris King dropset 2)
- Tyre Clearance 700 x 32c
- Front Derailleur 34.9mm Band On
- Seatpost 31.6mm or 27.2 with shim
All of our models are available as a frame only, frameset or complete bike. It's also possible to purchase a finishing kit package, ‘rolling chassis’ including wheels, or a part build if you already have some components you would like to use. Get in touch for details on options not listed.
Our Core range models are available with stock sizing and features. This means that it’s not possible to change geometry or tyre clearance, however you can still choose your finish and component spec to make it your own. For more information on the different types of finishes available please see our finishing page and our paintworks page. Build prices for our most popular builds are listed as a guide, but if you would like a configuration not listed then please get in touch.
If you purchase a complete bike, it will be supplied fully assembled although a small amount of assembly may be required if the bike is shipped via a courier service. We can build a bike using components supplied by customers, please get in touch to discuss options and prices.
Yes, the Evoke is designed to fit all groupsets, with internal cable routing
The Evoke is designed as a road bike, however it has generous tyre clearance and is plenty strong enough to handle the occasional foray onto a smooth gravel track. If you may find yourself straying away from tarmac regularly, then we suggest looking at our Etape or Escape models.
The Evoke can easily accommodate a 700c x 32mm tyre. However different combinations of rim/tyre and certain brands will measure up differently to the stated size. We can’t guarantee that all 32c tyre of this size will fit.
We currently have good stock levels on Evoke frames in all sizes except for 52cm. Lead times on bike builds vary depending on the specification but Shimano builds are generally 2-3 weeks. Sram and Campagnolo builds tend to be anywhere from 4-8 weeks. Please contact us if you have a specific build in mind and we will do our best to give you as accurate an ETA as we can.
You can buy your chosen Enigma directly from us here at Enigma HQ where you will enjoy a premium customer experience. Alternatively, you can buy from one if our chosen cycle retail partners, all carefully selected for their expertise, service and facilities.
We work with all the major Ride to Work schemes including:
Frame Buying Options
Evoke Mk3
Get ready to take on the road with the all-new Evoke. Drawing inspiration from classic race bikes, the Evoke has been enhanced with modern features and performance to excel against the competition in 2023.

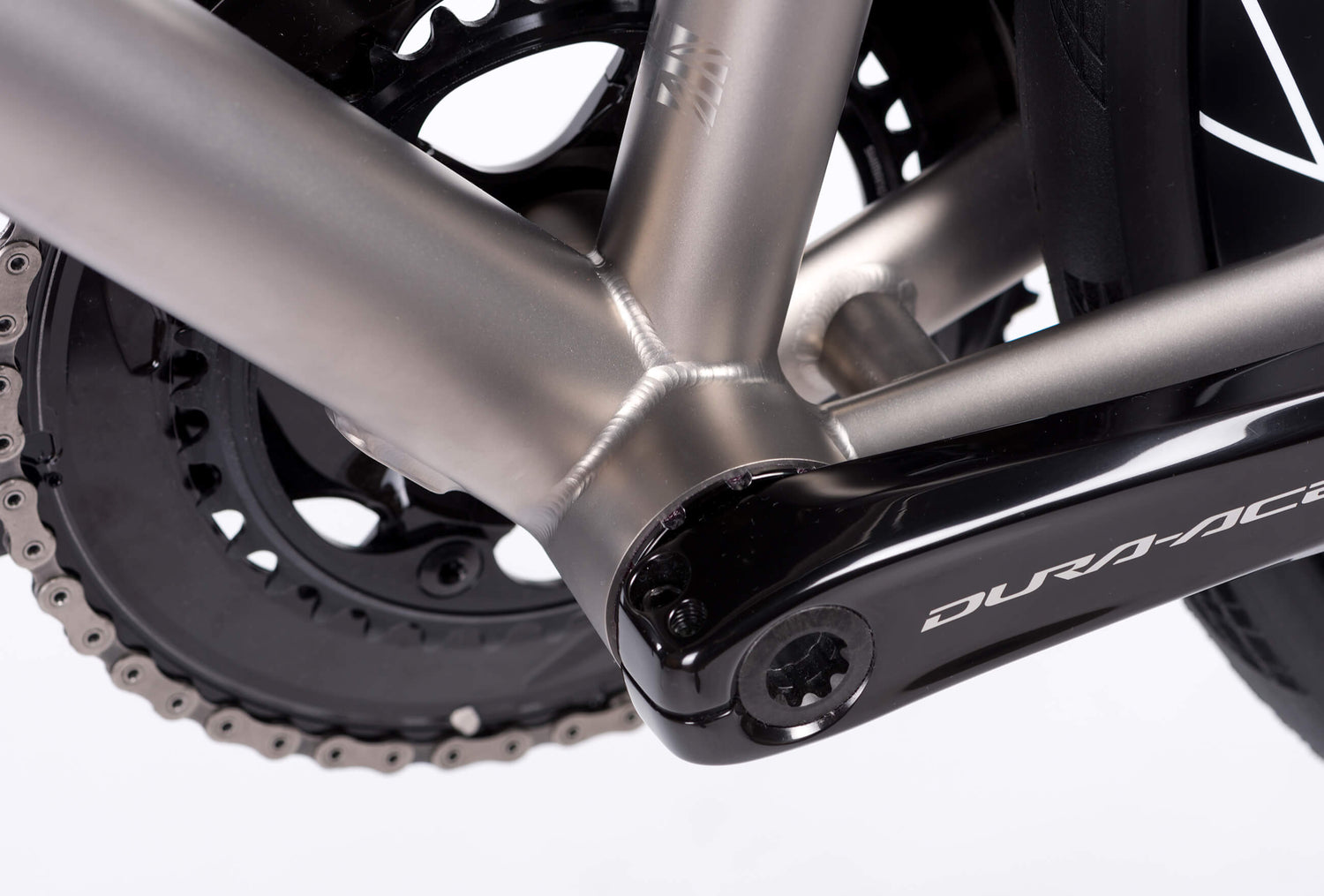

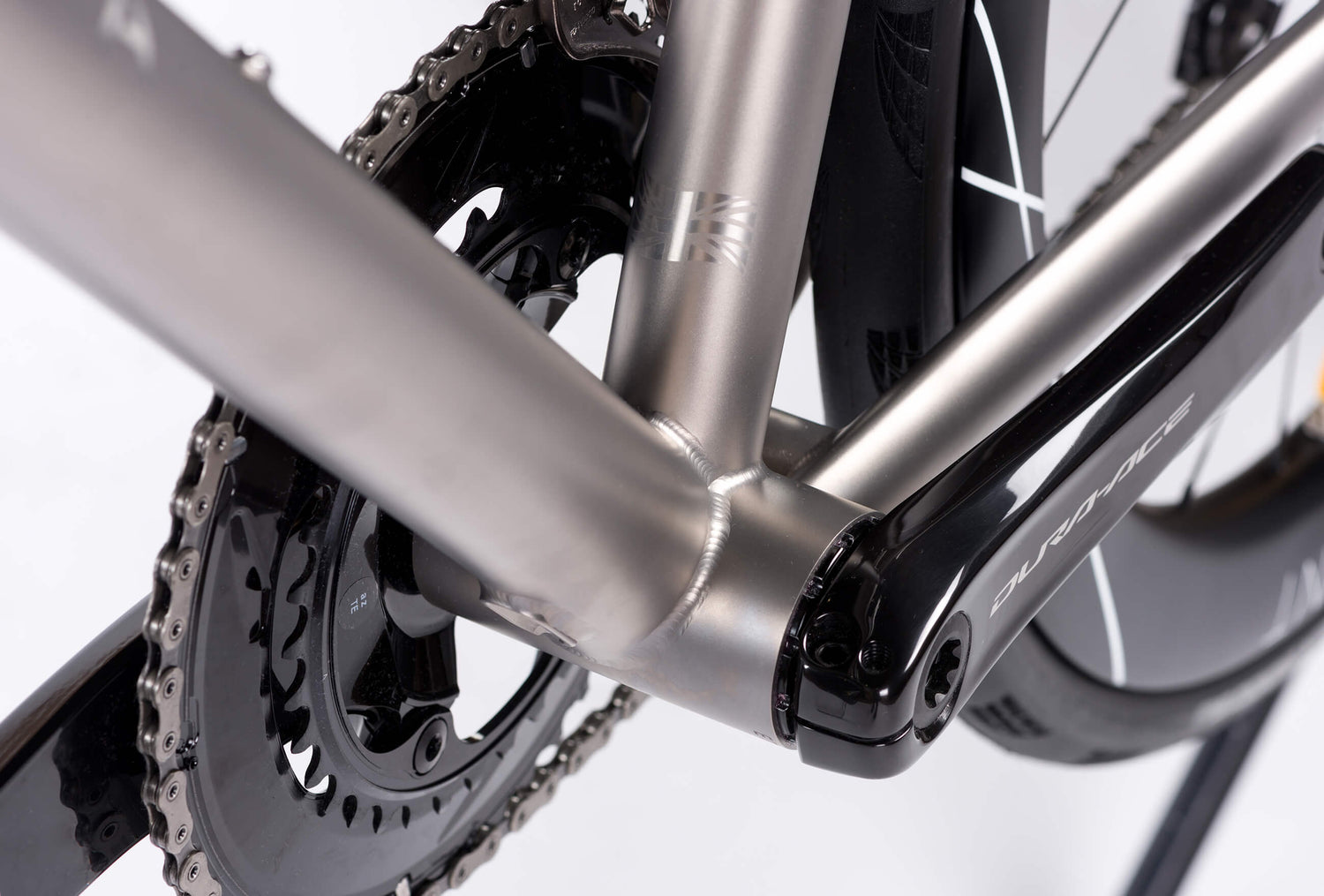

With internal cable routing, a T47 bottom bracket and stiffer chainstays, you'll experience even more performance when climbing or sprinting and increased stability on those high speed descents. Our new cable routing system provides a neat and minimal solution for 1x, 2x, mechanical, di2 and wireless drivetrains, ensuring you stay up to date for years to come.
Like our other Core range models, the Evoke features size specific tubing. We specify our custom 3Al/2.5V tube set with varying tube diameters and butt profiles to suit different size frames. This ensures riders across the size range get a consistent ride feel, with optimised stiffness, comfort and weight saving.
Purpose-built for fast-paced road riding we've left out any superfluous mounts or braze-ons. And with just the right tire clearance for modern large-volume road tires, you'll get the best performance possible.
Whether you're into summer club rides, fast solo blasts, all-day epics, sportive's, or even the occasional race, the Evoke will reward you for every second you spend on it.
Are you ready to take your riding to the next level? The Evoke is waiting for youGeometry
The sizing chart will help get you on the right size bike, please also refer to the geometry table for full specification. Learn more about Enigma Bike Sizing
Enigma Evoke Mk3 Disc
| Frame Size (cm) | A - Top Tube (mm) | B - Seat Tube (mm) | C - Head Tube (mm) | D - Chain Stay (mm) | E - BB Drop (mm) | F - Seat Angle° | G - Head Angle° | H - Fork Offset (mm) | I - Stack (mm) | J - Reach (mm) | K - Wheel Base (mm) | Down Tube OD | Top Tube OD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 500 | 445 | 105 | 420 | 75 | 75.5 | 71.5 | 47 | 514 | 47 | 975 | 38 | 32 |
| 52 | 520 | 485 | 125 | 420 | 75 | 75.0 | 72.0 | 47 | 536 | 375 | 987 | 38 | 32 |
| 54 | 540 | 520 | 145 | 420 | 75 | 74.5 | 72.5 | 47 | 556 | 385 | 999 | 38 | 32 |
| 56 | 560 | 550 | 165 | 420 | 75 | 74.0 | 73.0 | 47 | 577 | 394 | 1010 | 44 | 35 |
| 58 | 580 | 575 | 185 | 420 | 75 | 73.5 | 73.5 | 47 | 598 | 403 | 1020 | 44 | 35 |
| 60 | 600 | 595 | 205 | 420 | 75 | 73.0 | 74.0 | 47 | 619 | 411 | 1030 | 44 | 35 |
Sizing
| Frame Size (Horizontal Top Tube) | Rider Height (cm) | Rider Height (Inches) | Saddle Height (mm) |
|---|---|---|---|
| 50 | 158 | 5'2" | 660 |
| 51 | 162 | 5'4" | 680 |
| 52 | 166 | 5'5" | 700 |
| 53 | 170 | 5'7" | 720 |
| 54 | 174 | 5'8" | 740 |
| 55 | 178 | 5'10" | 760 |
| 56 | 182 | 6'0" | 780 |
| 57 | 186 | 6'1" | 800 |
| 58 | 190 | 6'3" | 820 |
| 59 | 194 | 6'4" | 840 |
| 60 | 198 | 6'6" | 860 |
Our team of expert fitters are always on hand to help you choose, so if in any doubt please get in touch.
