Fast, Smooth And Comfortable. The Echelon Is Designed For Long Hours In The Saddle
  • Frame Material custom butted, size specific, grade 9 3Al/2.5V titanium

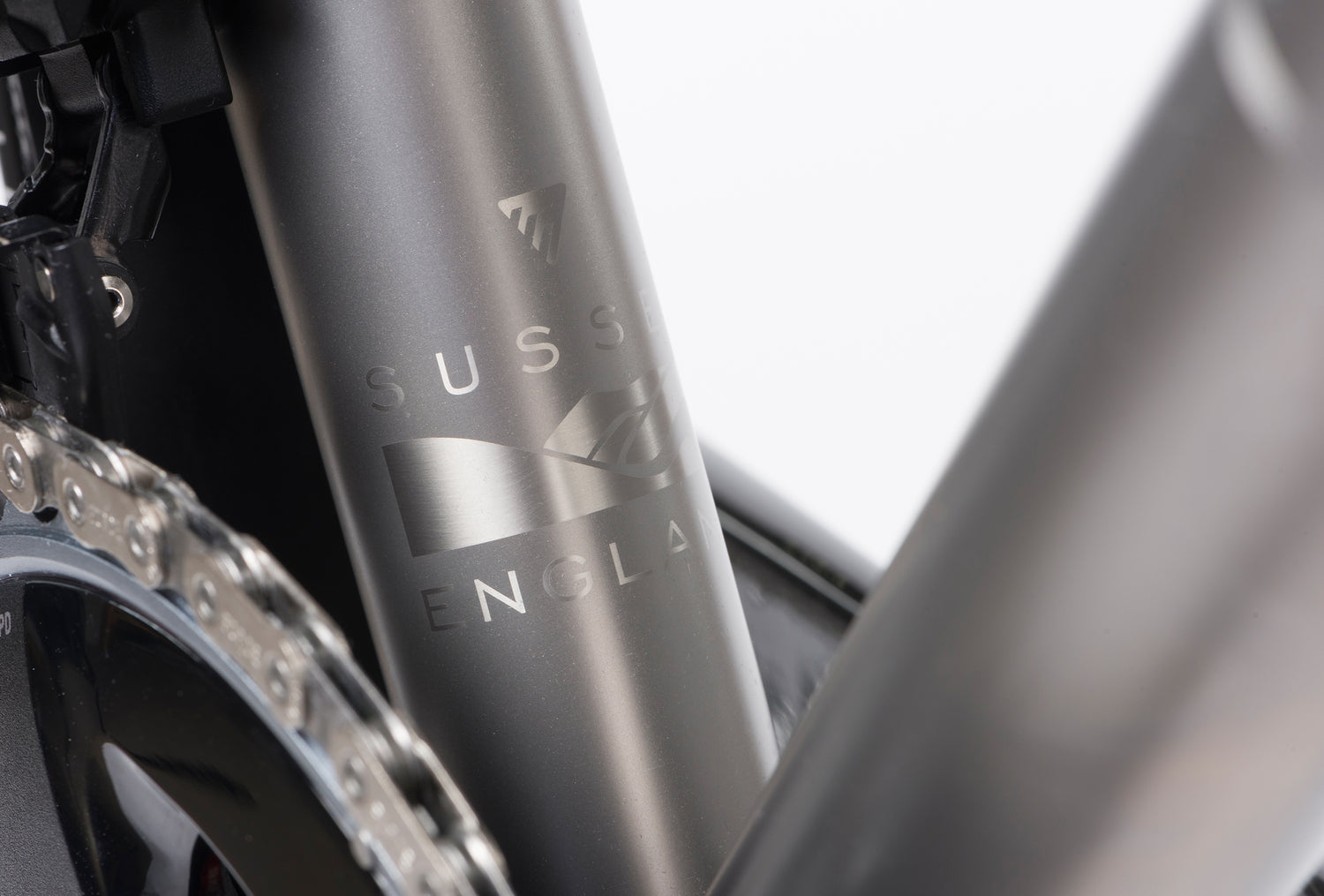

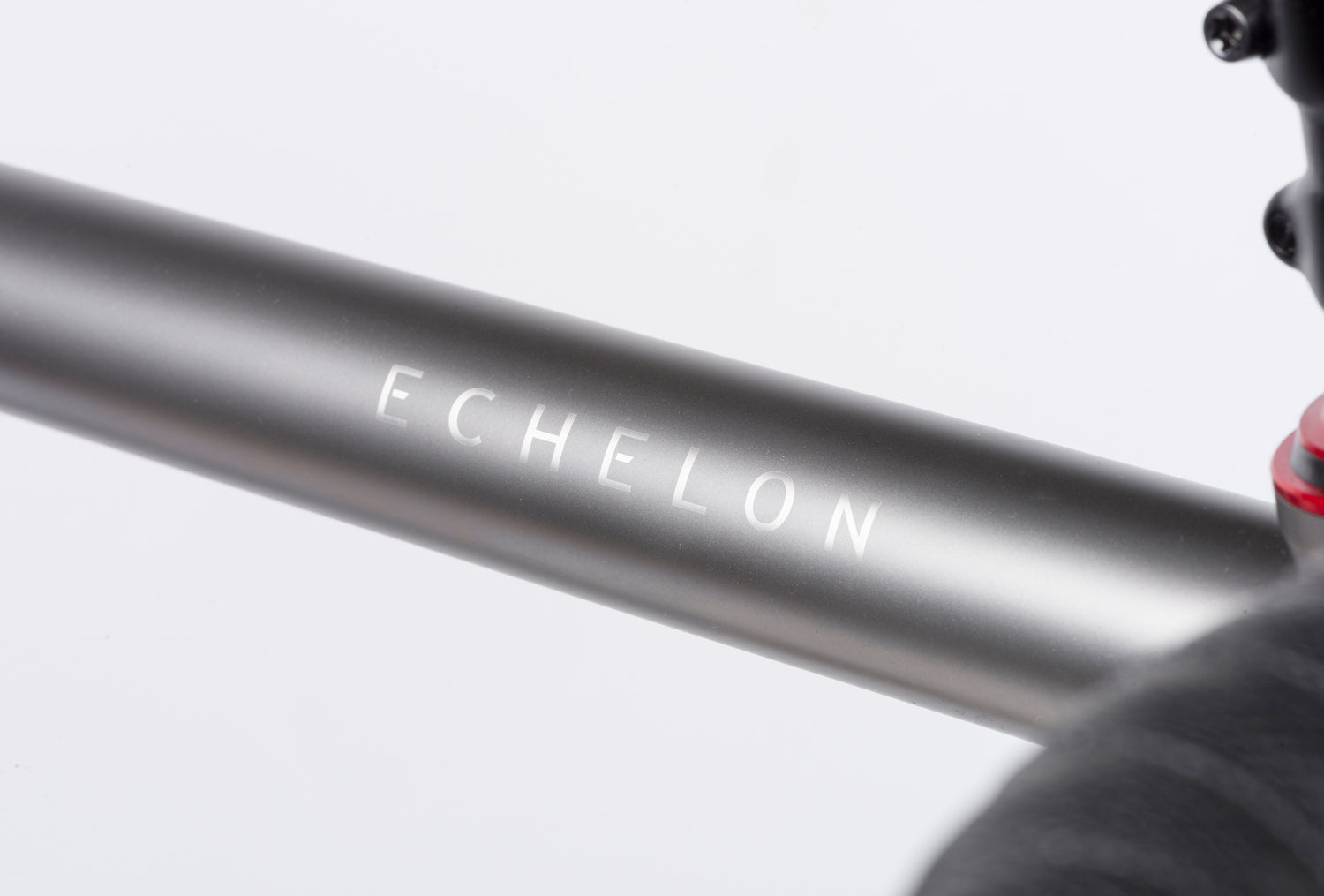

  • Frame Finish Included satin bead with mirror polished logos
  • Axles (Disc models) 12mm x 100mm front, 12 x 142mm rear Bolt Thru
  • Axles (Rim) 9mm x 100mm front, 9mm x 130mm rear Q/R

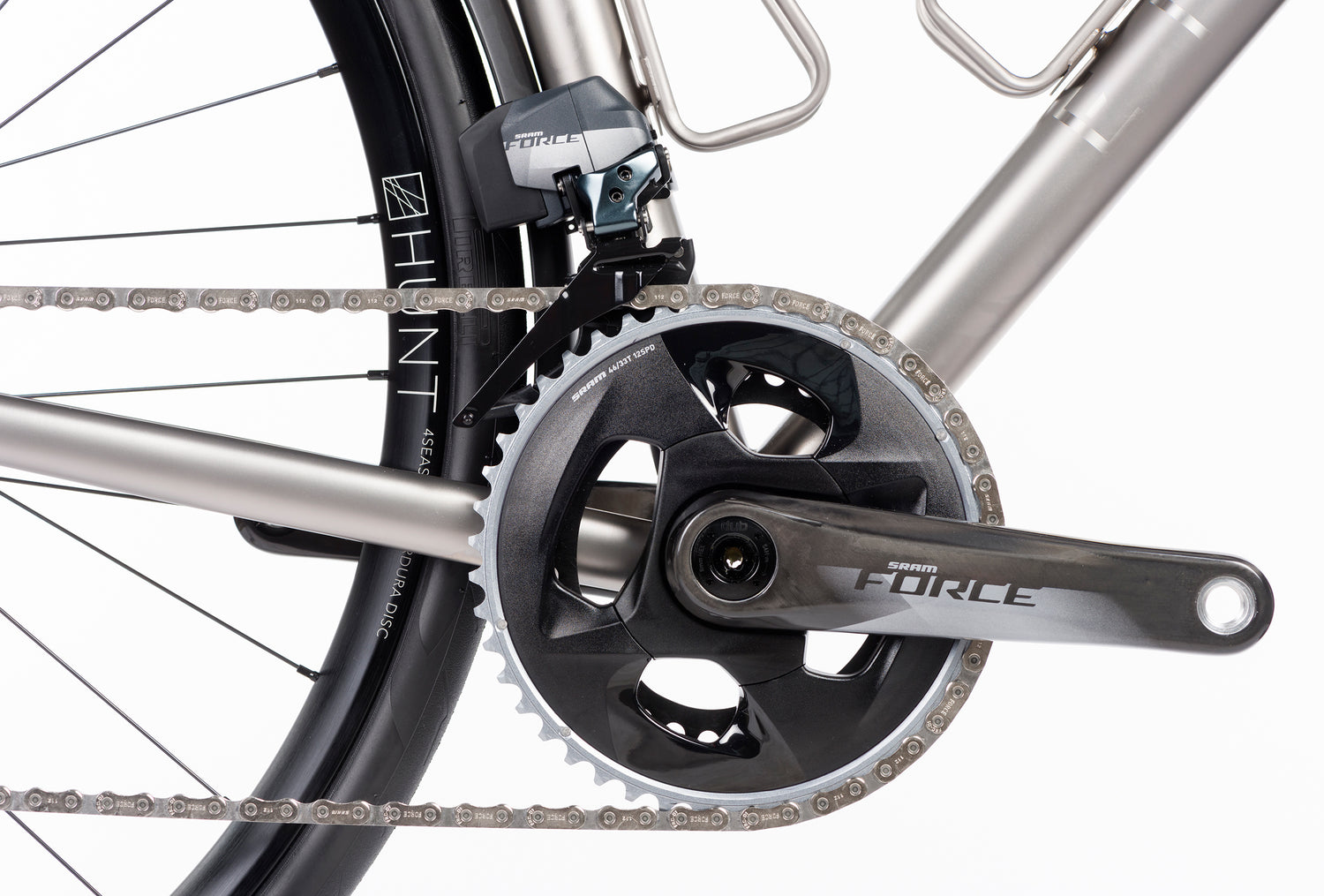

  • Bottom Bracket BSA 68mm as standard | T47 upgrade available

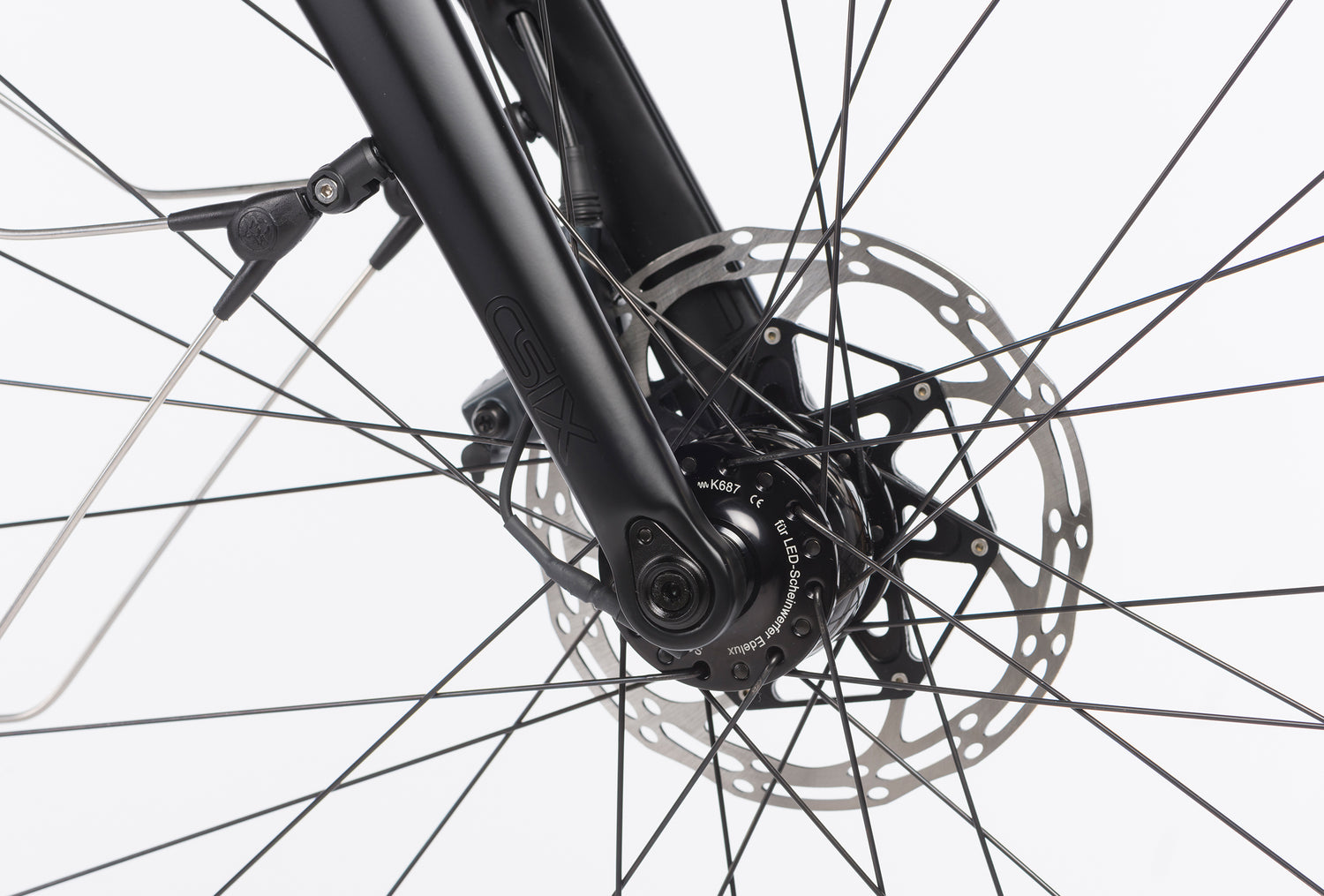

  • Brake Mount (AR/RD Disc) Flat Mount, 140 or 160mm Rotor
  • Brake Mount (Rim) Standard single bolt road caliper brake
  • Seat Tube Internal 31.6mm
  • Seat Tube External 34.9mm
  • Headset Integrated ZS44 Upper / EC44 Lower (Chris King Inset 7/8)
  • Tyre Clearance (Disc RD) 700c x 32mm | (Disc AR) 700c x 35mm
  • Tyre Clearance (Rim) 700c x 28mm
  • Front Derailleur 34.9mm Band On
  • Seatpost 31.6mm or 27.2 with shim

We view all our riders as individuals and as such all our stock geometries are unisex in design – offering 11 finely tuned stock sizes from 50cm to 60cm, with the additional option of a full custom design and build (+£300).


Because every Echelon frame is made to order here in our Sussex workshop, we have complete control from start to finish. This allows us to control every step of production, and allows you to fine tune your Echelon your way. From custom geometry through to bespoke finishes and more. So if a stock geometry frame doesn’t work for you, we’ll make you one that does, and with careful consideration on components we can further customise every build to ensure the fit is perfect.


We feel that having a frame that fits you perfectly is a critical part of the process. We have over 20 years of bike fitting experience and data to call upon to ensure your riding position is absolute pinpoint. You can make an appointment here for a fitting. No obligation.


Alternatively you can send us any fit data you have or if you have a bike that fits you perfectly, let us know and we can go from there.


Further information on our sizing and frame geometry can be found here.

Opting for an individually crafted frame presents the benefit of total customisation, tailored specifically to match your distinctive style and riding preferences. This flexibility enables the meticulous adjustment of each frame to cater to riders' specific needs, encompassing personalised frame geometry, customised cable routing, the addition of extra eyelets, and the option for unique frame finishes, including bespoke paint designs. Virtually anything is within the realm of possibility.


When considering complete bike purchases, the range of achievable specifications is extensive. If you have a specific vision for your upcoming bike build, just let us know, and we can turn your ideas into reality.

Get in touch:

Call, email, or book a visit online by clicking here .


Discussion:

During our conversation we will better understand:
-Your riding style
-Your objectives and targets
-Frame sizing based on fitting data


Precise Understanding:

Once all the information has been collected we will draw up a cad image with your measurements and position for sign off. We will also send over detailed order confirmation which will list out all the parts for your bike build.


Sign off:

Once the order and frame design has been signed off and given the green light we will request a £1000 deposit to reserve a build slot.


Enigma Partner:

Alternatively, get in touch with your local Enigma dealer who will carefully guide you through the process.

Once the design and specification are complete and signed off we will request your deposit. Once paid you be given a production slot and we will then start to collate/order any additional tubing or components for your order.


Please note, if you’re intending to pay the full amount through a cycle scheme then your deposit will be refunded once we’ve processed your voucher, normally upon handover of your bike or frameset.

The next part is the hard part…..the wait! We aim to have your frame assembled between 60-90 days depending on how customised the geometry is. If you are having a full bike build During this time any parts for a build will have been collated and ordered so once the frame has been signed off, the mechanics can start assembly. Please allow extra time for any paintwork

Upon completion of the construction of your Enigma and its readiness for handover, we will prompt you for settling the outstanding balance. We gladly accept all major debit/credit cards and collaborate with prominent Ride to Work schemes, as depicted below. It's important to note that, due to elevated commission rates associated with specific schemes, a surcharge may be applicable. Additionally, we extend the option of financing through V12. To streamline the process, we kindly request information about your preferred payment method, be it through a scheme or utilizing our financing option, at the time of placing your order.

Frame Buying Options

Handmade frames built to perfection by the Enigma team here in our Sussex workshop. Every Signature frame is meticulously crafted to exacting standards using the finest hand selected materials and is designed to deliver exceptional performance combined with an aesthetic that is classic, beautiful and ‘British’.

Our Signature Echelon frame includes a satin bead finish with mirror polished logos as standard. Please see our finishing page for more information and options.

    Frame Only Price:
  • AR/RD Disc From - £3075 | Rim From – £2850
  • T47 Bottom Bracket & Internal Routing + £225 (AR/RD only)
  • Custom Geometry Upcharge + £300
    Frameset From Price:
  • AR/RD Disc From - £3553 | Rim From - £3249
  • AR/RD Disc with T47 upgrade From - £3778

AR/RD - The frameset price includes our own variant specific C-Six full carbon monocoque road fork, TK036A tapered headset, alloy seat collar, thru-axles front and rear and any appropriate guides.

RD Upgrade Option - Add a Chris King Inset Headset & Enve Tapered Road Disc Fork for an extra £377

Rim - The frameset price includes our own variant specific C-Six full carbon monocoque road fork, TK036A tapered headset, alloy seat collar and any appropriate guides.

Rim - Upgrade Option – Add a Chris King Inset Headset & Enve Tapered Road Fork for an extra £247

Echelon

Every Echelon is precision crafted in our Sussex workshop from hand selected grade 9 and 3AL 2.5V double butted titanium tubes ensuring light weight with high strength and fatigue resistance. The geometry is designed with endurance riding in mind for a fast yet comfortable ride. It's a little more relaxed than our Excel model, but the geometry can be customised for the perfect fit. Full custom geometry is available as an option

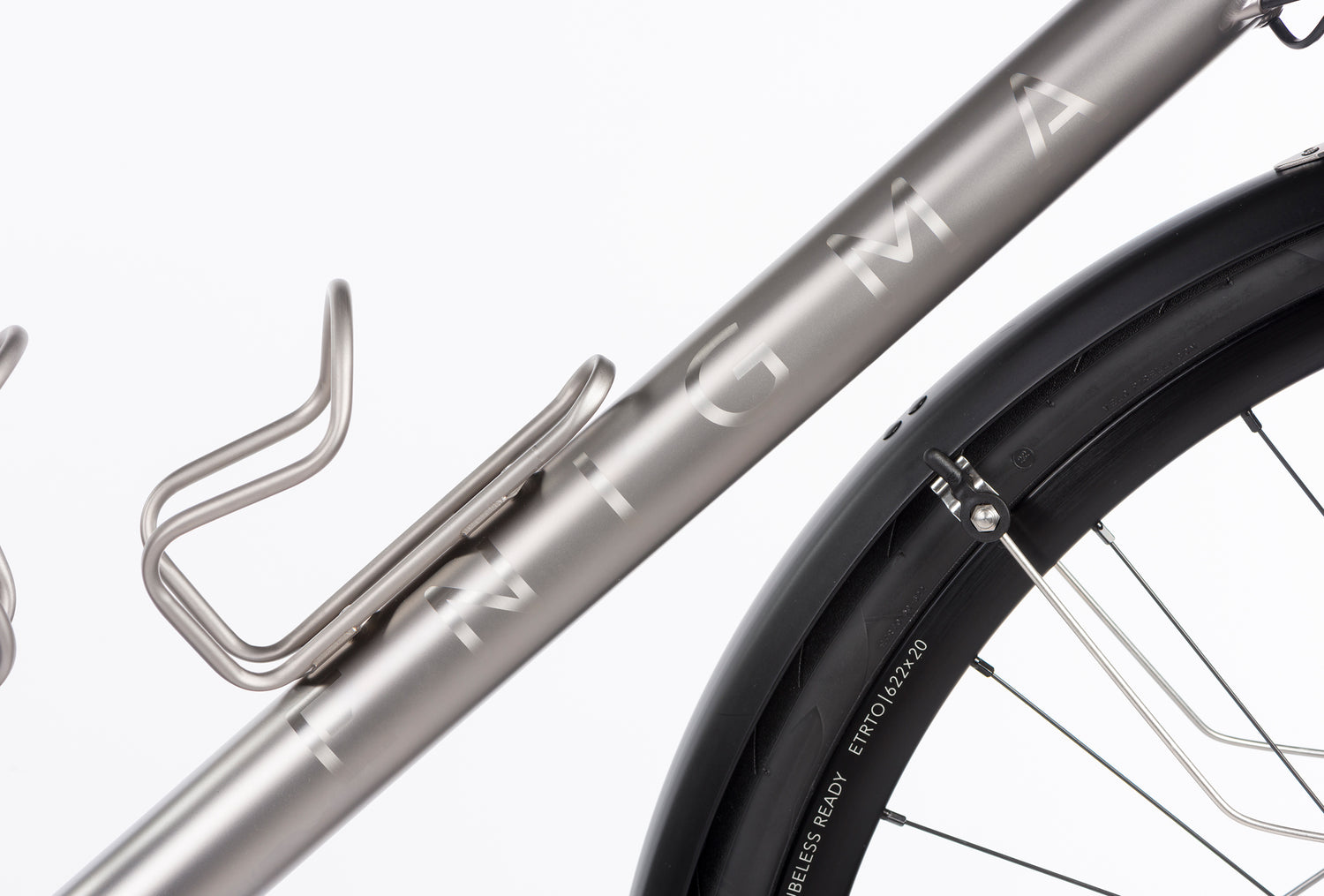

Building each Echelon in house enables us to offer a couple of different platforms. The All-Road configuration offers a highly versatile 4-season ride with wider tyre clearance and mudguard fittings making it ideally suited for mixed all year round road riding. The Road platform tightens everything up and it becomes a fast, smooth endurance bike in either disc or rim brake setup.

Upgrading to internal cable routing for both gear and hydraulic cables/hoses, which includes a T47 BB, give a super-clean and uncluttered aesthetic. In addition a range of upgraded finish alternatives are available as well as a full custom finish option for the rider looking for an extra touch of individuality.

Check out this brilliant video from our partners at LightWolf Studio in Dresden, Germany which follows mechanic Basti, assembling this beautiful All Road Echelon Bike for a customer.

Enigma Customer - Jonathan Dabernig

The first project for my Echelon was 1500km of Land's End to John O'Groats ridden unsupported in September 2021. The bike was an absolute joy to ride. Comfortable, fast, responsive, reliable - all in one package! Oh, and it looks fantastic too.

Thank you for all your help and advice during fit and build, and to Jim and Max for getting the bike ready in time for LEJOG

Geometry

The sizing chart will help get you on the right size bike, please also refer to the geometry table for full specification. Learn more about Enigma Bike Sizing

Enigma Echelon

Frame Size (cm) A - Top Tube (mm) B - Seat Tube (mm) C - Head Tube (mm) D - Chain Stay (mm) E - BB Drop (mm) F - Seat Angle° G - Head Angle° H - Fork Offset (mm) I - Stack (mm) J - Reach (mm) K - Wheel Base (mm) Down Tube OD Top Tube OD
50 500 470 95 420 75 76.0 71.5 47 516 369 979 42 32
51 510 485 105 420 75 75.5 71.5 47 535 371 985 42 32
52 520 500 115 420 75 75.0 72.0 47 546 374 983 42 32
53 530 515 125 420 75 74.5 72.0 47 547 377 992 42 35
54 540 530 135 420 75 74.0 72.5 47 558 377 994 42 35
55 550 545 145 420 75 73.5 72.5 47 567 381 999 42 35
56 560 560 155 420 75 73.0 73.0 47 579 383 1014 42 35
57 570 575 165 420 75 73.0 73.0 47 588 393 1009 42 35
58 580 590 175 420 75 73.0 73.0 47 598 397 1019 44 35
59 590 605 185 420 75 72.5 73.5 47 609 401 1019 44 35
60 600 620 195 420 75 72.5 74.0 47 621 405 1024 44 35
Frame Size (cm) A - Top Tube (mm) B - Seat Tube (mm) C - Head Tube (mm) D - Chain Stay (mm) E - BB Drop (mm) F - Seat Angle° G - Head Angle° H - Fork Offset (mm) I - Stack (mm) J - Reach (mm) K - Wheel Base (mm) Down Tube OD Top Tube OD
50 500 450 105 425 75 76 71 47 524 366 989 42 32
51 510 465 115 425 75 75.5 71.5 47 535 369 991 42 32
52 520 480 125 425 75 75 71.5 47 546 372 997 42 32
53 530 495 135 425 75 74.5 72 47 556 374 998 42 35
54 540 510 145 425 75 74 72 47 566 377 1004 42 35
55 550 525 155 425 75 73.5 72.5 47 577 379 1004 42 35
56 560 540 165 425 75 73.5 72.5 47 586 385 1014 42 35
57 570 555 175 425 75 73.5 72.5 47 596 393 1025 44 35
58 580 570 185 425 75 73 73 47 607 394 1025 44 35
59 590 585 195 425 75 73 73 47 617 401 1034 44 35
60 600 600 205 425 75 73 73 47 626 408 1044 44 35
Frame Size (cm) A - Top Tube (mm) B - Seat Tube (mm) C - Head Tube (mm) D - Chain Stay (mm) E - BB Drop (mm) F - Seat Angle° G - Head Angle° H - Fork Offset (mm) I - Stack (mm) J - Reach (mm) K - Wheel Base (mm) Down Tube OD Top Tube OD
50 500 450 105 415 75 76 71 370 520 367 976 42 32
51 510 465 115 415 75 75.5 71.5 370 531 370 978 42 32
52 520 480 125 415 75 75 71.5 370 541 373 984 42 32
53 530 495 135 415 75 74.5 72 370 552 375 985 44 35
54 540 510 145 415 75 74 72 370 564 377 991 44 35
55 550 525 155 415 75 73.5 72.5 370 573 380 992 44 35
56 560 540 165 415 75 73.5 72.5 370 582 387 1002 44 35
57 570 555 175 415 75 73.5 72.5 370 592 394 1012 44 35
58 580 570 185 415 75 73 73 370 603 396 1012 44 35
59 590 585 195 415 75 73 73 370 613 403 1022 44 35
60 600 600 205 415 75 73 73 370 622 410 1032 44 35

Sizing

Frame Size (Horizontal Top Tube)   Rider Height (cm) Rider Height (Inches) Saddle Height (mm)
50 158 5'2" 660
51 162 5'4" 680
52 166 5'5" 700
53 170 5'7" 720
54 174 5'8" 740
55 178 5'10" 760
56 182 6'0" 780
57 186 6'1" 800
58 190 6'3" 820
59 194 6'4" 840
60 198 6'6" 860

Our team of expert fitters are always on hand to help you choose, so if in any doubt please get in touch.
